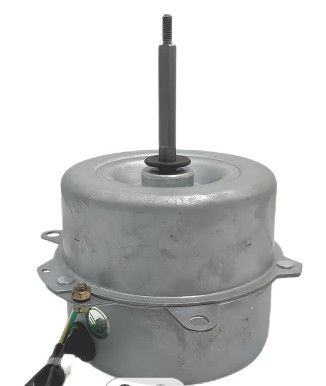

Elelctric Fan 3 Phase Induction Motor 2200RPM Three Phase Asynchronous Motor

AC Induction Motor Three-Phase 110V 2200RPM Used For Elelctric Fan

Advantages of Induction Motors

(1)Small and lightweight.

(2)Easy to achieve high-speed rotation with a speed exceeding 10000r/min.

(3)High operating efficiency at high speed and low torque.

(4)High torque at low speeds and wide speed control range.

(5)High reliability (robustness).

(6)Low manufacturing cost.

(7)Simplification of control devices.

Induction motor is a type of asynchronous motor. As asynchronous motors are mainly induction motors, they can also be directly defined as induction motors when defining them. Asynchronous motors not only include induction motors, but also doubly fed asynchronous motors and AC commutator motors.

Rated value of induction motor

(1) Rated power PN: refers to the mechanical power generated by the shaft end of the motor when operating at rated state. The unit is kilowatts (kW).

(2) Rated voltage UN of stator: refers to the line voltage that should be applied to the stator winding when the motor is operating at rated state. The unit is volts (v).

(3) Stator rated current IN/"refers to the line current flowing into the stator winding when the motor operates at rated voltage and the output power reaches rated power, in amperes (A).

(4) The rated frequency fN refers to the power frequency applied to the stator, and the power frequency regulation in China is 50 Hz.

(5) Rated speed: The speed of the rotor when a motor is running at rated state, in revolutions per minute (r/min). In addition to the above data, sometimes the nameplate also indicates the power factor, efficiency, temperature rise, rating, etc. of the motor during rated operation. For wound type motors, data such as rotor voltage and rotor rated current are often indicated.
