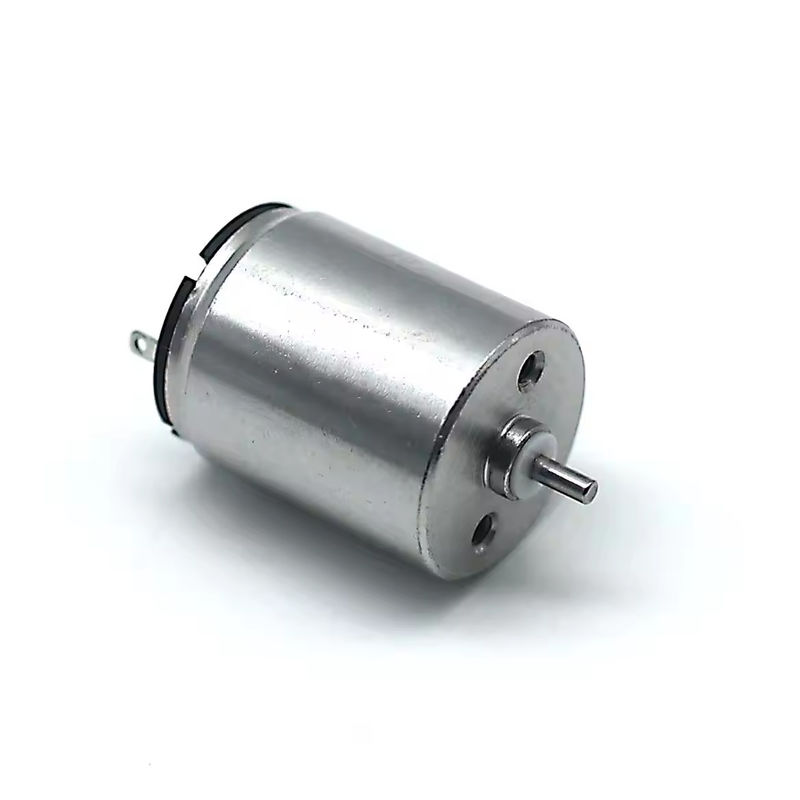

Medical Equipment Motor 3V-12V 4200-8820RPM For Urine Analyzer

Medical Equipment Motor 3V-12V 4200-8820RPM For Urine Analyzer

Essential Details

Model Number: KG-1626DC12

Rated Voltage: 12V

Rated Speed: 4200-8820RPM

Continuous Current: 0.04-0.22A

Place of Origin: Guangdong, China

Type: Brush DC Motor

Application: Medical Equipment

Rated Torque: 2(mNm)

Application: Urine Analyzer

Lead Time

Performance Specifications

Drawings

Motor Picture

Application

Shenzhen Go-Gold Motor Co., Ltd is a manufacturer that integrates research and development, production, and sales of push rod motors. The company has a professional research team and professional equipment, mature technology, professional manufacturing process, and beautiful product appearance!

Our Adventage

1.With the best after-sale service to satisfy every customer.

2.With the good principle "quality and reputation always come first".

3.With the professional technical guidance and strong development ability.

4.With Advanced automatic machine and production line for ensure the high efficiency, excellent quality and favorable cost.

5.Our company is specialized in the production of motor with its own factory with 8 years of production experience.

Our company specialized in manufacturing in various of Universal motor, DC motor, Induction motor and Brushless motor that are widely applied to household appliances, intelligent home, electric tools, medical equipment etc.

Brush DC Motor Introduction

A brushed DC  motor is an internally commutated electric motor designed to be run from a direct current power source and utilizing an electric brush for contact

Brushed motors were the first commercially important application of electric power to driving mechanical energy, and DC distribution systems were used for more than 100 years to operate motors in commercial and industrial buildings. Brushed DC motors can be varied in speed by changing the operating voltage or the strength of the magnetic field. Depending on the connections of the field to the power supply, the speed and torque characteristics of a brushed motor can be altered to provide steady speed or speed inversely proportional to the mechanical load. Brushed motors continue to be used for electrical propulsion, cranes, paper machines and steel rolling mills. Since the brushes wear down and require replacement, brushless DC motors using power electronic devices have displaced brushed motors from many applications.

The Working Pricinple of Brush DC Motor

Brushed DC motors work by having the coil rotate inside the surrounding magnets. The rotation of the coil causes the contact between commutator and brush to alternate, therefore switching the current flow through the coil. As a result, the brushed DC motor can operate.

The Strcture of Brush Motor

The general structure of a DC (brushed) motor is shown in Fig. 2.1. Permanent magnets are located within the stator, and situated in the center of these is a rotor containing windings. The rotor contains several windings, and both ends are connected to the commutator.
